In the previous articles in this series, we explored the core observability tools for metrics, logs, and traces, then took a closer look at the agents and collectors that gather telemetry data. Now it is time to put theory into practice. In this article, we will walk through collecting application logs running on Kubernetes using Fluent Bit as the log collector and Grafana Loki as the log storage backend.
What We Will Build
In this demo, we will set up a complete log collection pipeline on a local Kubernetes cluster using Minikube. Fluent Bit will run as a DaemonSet on each node to collect container logs and forward them to Loki. Loki will store log data in GarageHQ, a lightweight self-hosted S3-compatible object storage, instead of local disk. Finally, Grafana will query and visualize the logs stored in Loki.
Demo
Start Minikube
minikube start
GarageFS
Garage is a lightweight geo-distributed data store that implements the Amazon S3 object storage protocol. It enables applications to store large blobs such as pictures, video, images, and documents in a redundant multi-node setting.
helm upgrade --install garage-operator oci://ghcr.io/rajsinghtech/charts/garage-operator \
--namespace hepapi-monitoring \
--create-namespace --version 0.2.2
kubectl create secret generic garage-admin-token --namespace hepapi-monitoring \
--from-literal=admin-token=$(openssl rand -hex 32)

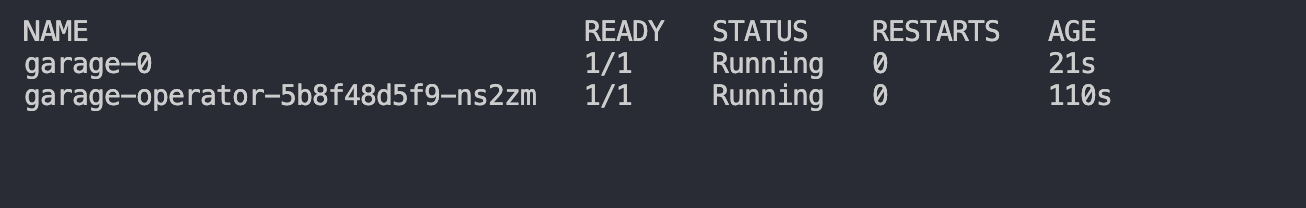

Install GarageFS Cluster
apiVersion: garage.rajsingh.info/v1alpha1
kind: GarageCluster
metadata:
name: garage
namespace: hepapi-monitoring
spec:
replicas: 1
zone: us-east-1
replication:
factor: 1
storage:
data:
size: 4Gi
network:
rpcBindPort: 3901
service:
type: ClusterIP
admin:
enabled: true
bindPort: 3903
adminTokenSecretRef:
name: garage-admin-token
key: admin-token

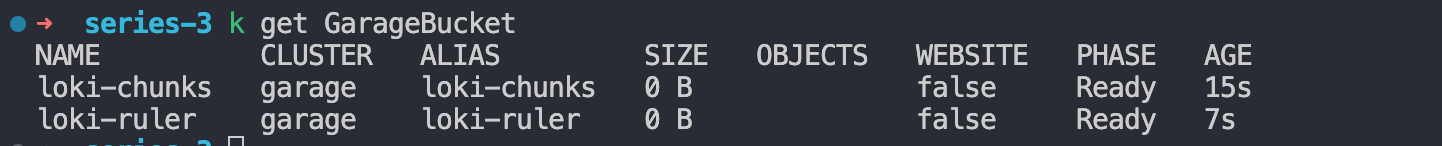

Create Buckets for Loki Storage
apiVersion: garage.rajsingh.info/v1alpha1
kind: GarageBucket
metadata:
name: loki-chunks
namespace: hepapi-monitoring
spec:
clusterRef:
name: garage
quotas:
maxSize: 2Gi
---
apiVersion: garage.rajsingh.info/v1alpha1
kind: GarageBucket
metadata:
name: loki-ruler
namespace: hepapi-monitoring
spec:
clusterRef:
name: garage
quotas:
maxSize: 1Gi
Create Admin-key for All Buckets
apiVersion: garage.rajsingh.info/v1alpha1
kind: GarageKey
metadata:
name: admin-key
namespace: hepapi-monitoring
spec:
clusterRef:
name: garage
allBuckets:
read: true
write: true
owner: true

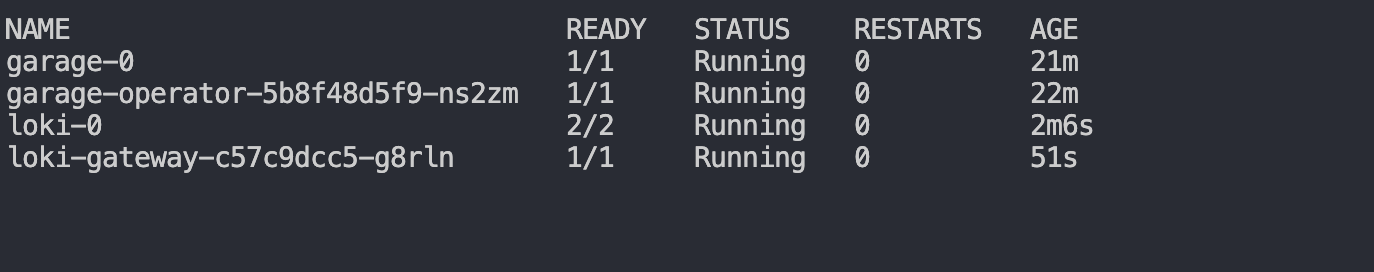

Install Loki
In the first article of this series, we covered Loki's deployment modes in detail. For this demo, we will use the single binary (monolithic) mode, which runs all Loki components in a single process and is well suited for local and small-scale setups. If you need a refresher on deployment modes, you can refer back to the first article.
deploymentMode: SingleBinary
loki:
auth_enabled: false
commonConfig:
replication_factor: 1
schemaConfig:
configs:
- from: "2025-06-01"
store: tsdb
object_store: s3
schema: v13
index:
prefix: loki_index_
period: 24h
compactor:
compaction_interval: 10m
working_directory: /tmp/compactor
retention_enabled: true
retention_delete_delay: 2h
delete_request_store: s3
limits_config:
allow_structured_metadata: true
retention_period: 48h # 2 days
storage_config:
tsdb_shipper:
active_index_directory: /var/loki/index
cache_location: /var/loki/index_cache
cache_ttl: 24h
storage:
type: s3
s3:
endpoint: http://garage.hepapi-monitoring.svc.cluster.local:3900
region: garage
secretAccessKey: #update me
accessKeyId: #update me
s3ForcePathStyle: true
insecure: true
bucketNames:
chunks: loki-chunks
ruler: loki-ruler
singleBinary:
replicas: 1
resources:
requests:
cpu: "500m"
memory: "1000Mi"
limits:
cpu: "500m"
memory: "1000Mi"
gateway:
enabled: true
# Disable other deployment modes
backend:
replicas: 0
read:
replicas: 0
write:
replicas: 0
distributor:
replicas: 0
ingester:
replicas: 0
querier:
replicas: 0
queryFrontend:
replicas: 0
queryScheduler:
replicas: 0
ruler:
replicas: 0
compactor:
replicas: 0
indexGateway:
replicas: 0
chunksCache:
enabled: false
resultsCache:
enabled: false
lokiCanary:
enabled: false
test:
enabled: falseUpdate the accessKeyId and secretAccessKey fields in your values.yaml with the values obtained from the commands below.
s3:
endpoint: http://garage.hepapi-monitoring.svc.cluster.local:3900
region: garage
secretAccessKey:
accessKeyId:
s3ForcePathStyle: true
insecure: trueecho "accessKeyId: $(kubectl get secret admin-key -n hepapi-monitoring -o jsonpath='{.data.access-key-id}' | base64 -d)"
echo "secretAccessKey: $(kubectl get secret admin-key -n hepapi-monitoring -o jsonpath='{.data.secret-access-key}' | base64 -d)"Update the retention_period field based on your needs. For this demo, we set it to 48h.
limits_config:
allow_structured_metadata: true
retention_period: 48hhelm repo add grafana https://grafana.github.io/helm-charts
helm upgrade --install loki grafana/loki --version 6.38.0 -n hepapi-monitoring --create-namespace -f loki-values.yaml
Install Grafana
We will install Grafana using Helm and configure Loki as a data source so we can query and explore our application logs directly from the Grafana UI.
adminUser: admin
adminPassword: hepapi-monitoring
replicas: 1
persistence:
enabled: false
datasources:
datasources.yaml:
apiVersion: 1
datasources:
- name: Loki
type: loki
uid: loki
url: http://loki-gateway
access: proxy
isDefault: falsehelm repo add grafana https://grafana.github.io/helm-charts
helm upgrade --install grafana grafana/grafana -n hepapi-monitoring --version 10.5.15 -f grafana-values.yamlOnce the Grafana pod is ready, you can access the UI by running the following command and navigating to http://localhost:3000 in your browser.
kubectl port-forward svc/grafana 3000:80 -n hepapi-monitoring
user: admin
password: hepapi-monitoring
Install Fluent Bit
With Loki up and running, the next step is to deploy Fluent Bit. We will install it using Helm as a DaemonSet, so it runs on every node in the cluster and collects logs from all running containers.
kind: DaemonSet
logLevel: info
metricsPort: 2020
flush: 1
config:
service: |
[SERVICE]
Daemon Off
Flush
Log_Level
Parsers_File /fluent-bit/etc/parsers.conf
Parsers_File /fluent-bit/etc/conf/custom_parsers.conf
HTTP_Server On
HTTP_Listen 0.0.0.0
HTTP_Port
Health_Check On
inputs: |
[INPUT]
Name tail
Path /var/log/containers/*.log
multiline.parser docker, cri
parser docker_no_time
Tag kube.*
Mem_Buf_Limit 5MB
Skip_Long_Lines On
filters: |
[FILTER]
Name kubernetes
Match kube.*
Merge_Log On
Keep_Log Off
K8S-Logging.Parser On
K8S-Logging.Exclude On
[FILTER]
Name grep
Match kube.*
Regex $kubernetes['namespace_name'] app
outputs: |
[OUTPUT]
name loki
match kube.*
host loki-gateway
port 80
labels cluster=minikube,service_namespace=$kubernetes['namespace_name'],service_name=$kubernetes['labels']['app'],detected_level=$level
customParsers: |
[PARSER]
Name docker_no_time
Format json
Time_Keep Off
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%Lhelm repo add fluent https://fluent.github.io/helm-charts
helm upgrade --install fluent-bit fluent/fluent-bit --version 0.57.6 -f fluentbit.yaml -n hepapi-monitoringIn a real cluster, not every log is worth storing. System components, internal controllers, and noisy namespaces can quickly inflate your storage costs and make debugging harder. Fluent Bit's grep filter gives you fine-grained control over which logs are forwarded to Loki.
You can include only the namespaces you care about:
[FILTER]
Name grep
Match kube.*
Regex $kubernetes['namespace_name'] ^(app|prod|staging)$Or you can exclude namespaces you want to ignore:
[FILTER]
Name grep
Match kube.*
Exclude $kubernetes['namespace_name'] ^(kube-system|calico-system|default)$In this demo, we use the first approach and collect logs only from the app namespace where our sample application is running.
Deploy Sample Log Pod
To verify that our log pipeline is working end-to-end, we will deploy a simple sample application that continuously outputs JSON-formatted logs at different levels. The application uses the busybox image and alternates between info- and warn-level messages, allowing us to test our Fluent Bit filters and confirm that logs flow into Loki correctly.
apiVersion: v1
kind: Pod
metadata:
name: json-logger
namespace: prod
labels:
app: json-logger
spec:
containers:
- name: json-logger
image: busybox
command: ["sh", "-c"]
args:
- |
while true; do
echo "{\"level\":\"info\",\"message\":\"hello from json-logger\",\"timestamp\":\"$(date -u +%Y-%m-%dT%H:%M:%SZ)\"}"
sleep 3
echo "{\"level\":\"warn\",\"message\":\"something might be wrong\",\"timestamp\":\"$(date -u +%Y-%m-%dT%H:%M:%SZ)\"}"
sleep 3
donekubectl create ns app
kubectl apply -f sample-log-pod.yaml
Verify Logs in Grafana

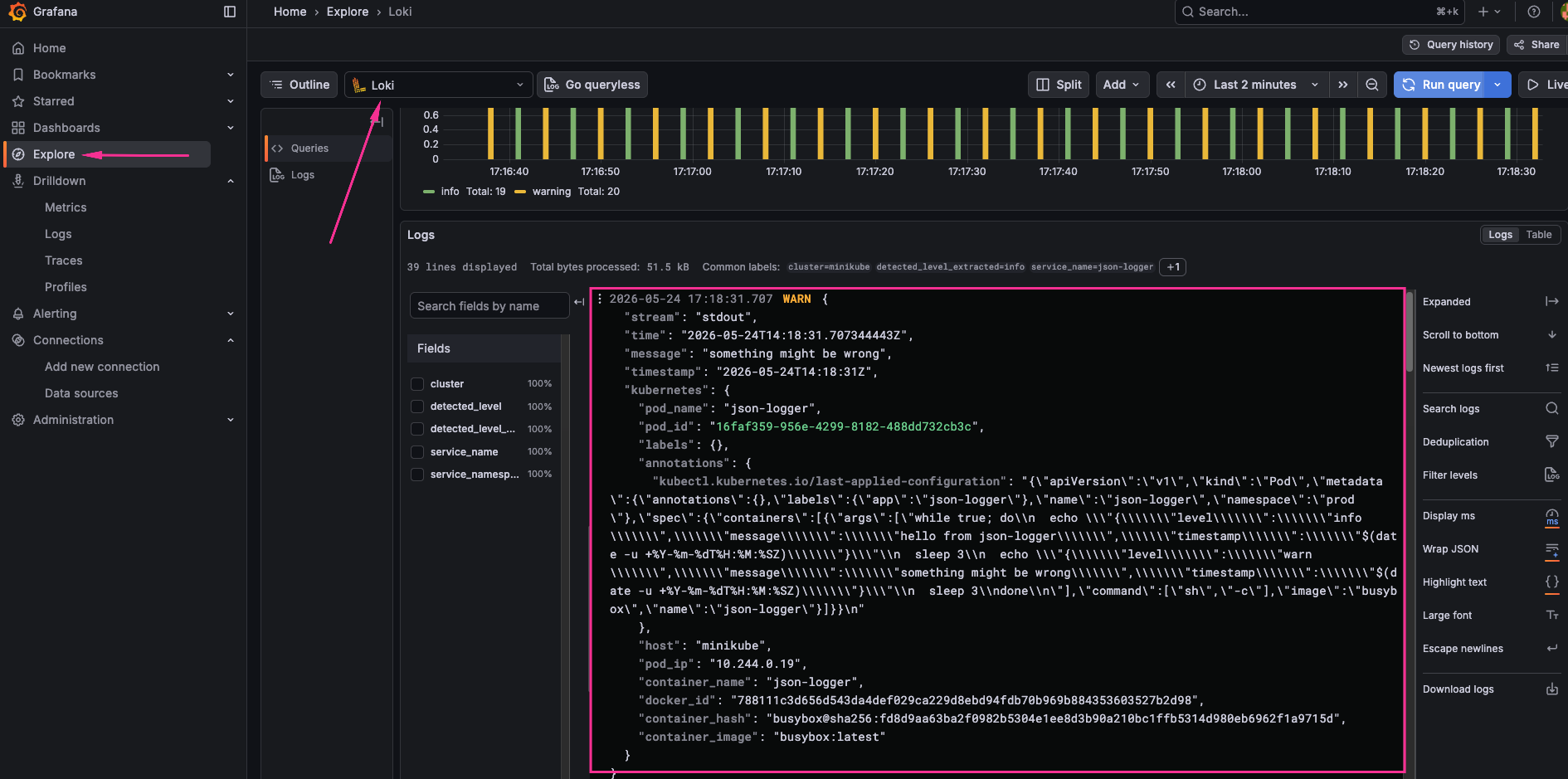

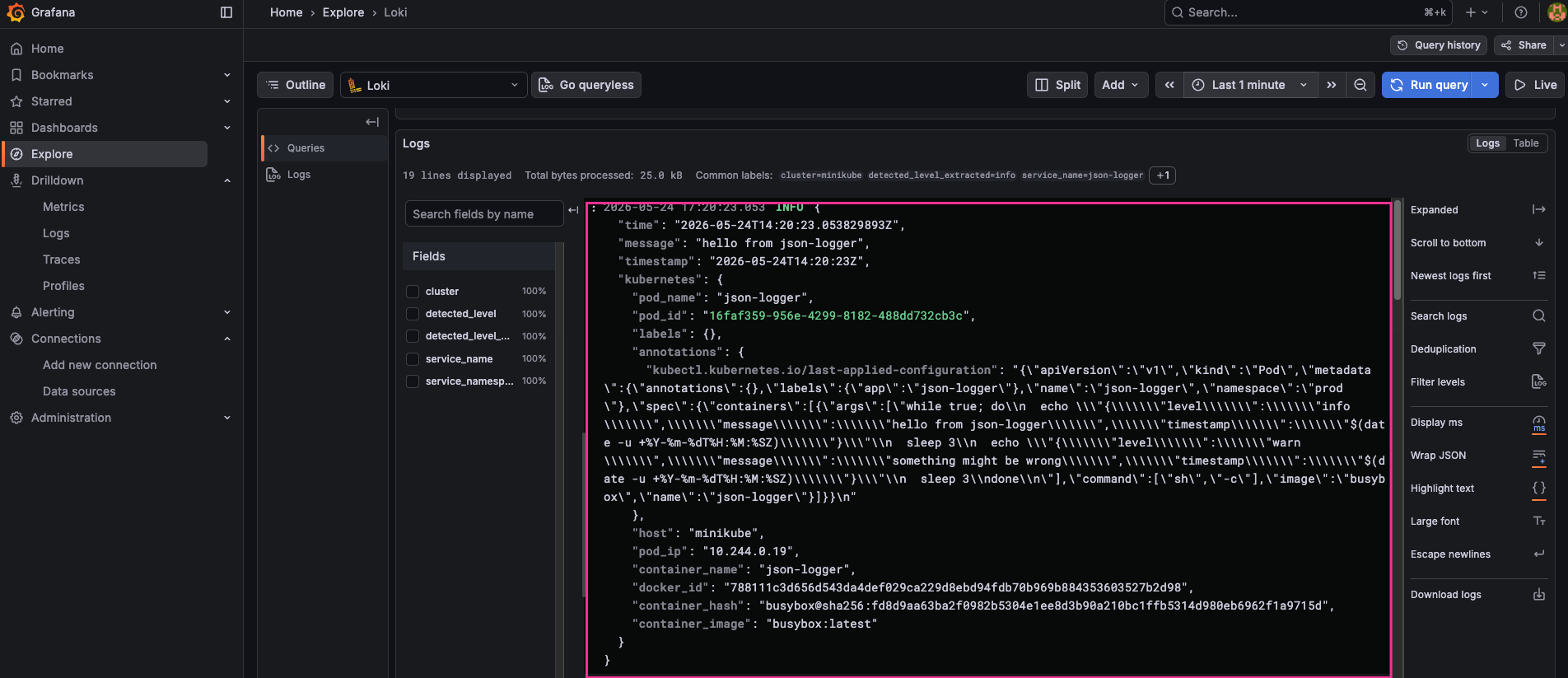

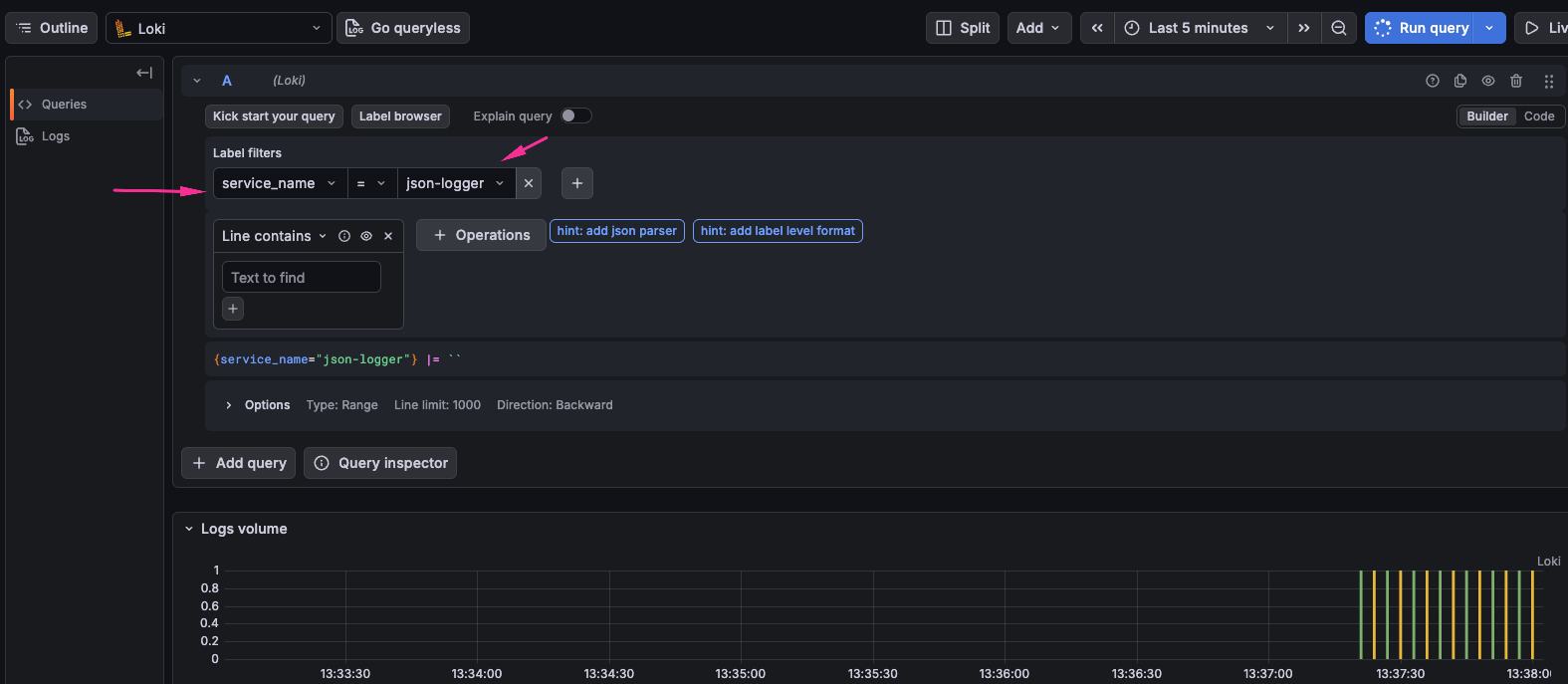

Once the application is running and generating logs, navigate to Grafana and click on Explore from the left menu. Select Loki as the data source, then use the label filters to query your logs. You can filter by cluster, service_name, or service_namespace to narrow down the results and confirm that logs are flowing through the pipeline correctly.
Dropping Unwanted Fields
Even after filtering by namespace, individual log records may still contain fields you do not need, such as stream. Storing these unnecessary fields wastes storage and adds noise when querying logs. You can use the record_modifier filter to remove specific fields before logs are forwarded to Loki.
[FILTER]
Name record_modifier
Match kube.*
Remove_key stream
Conclusion
In this article, we walked through a complete log collection pipeline on Kubernetes from the ground up. We deployed GarageFS as a lightweight S3-compatible object storage backend, configured Loki in single binary mode to persist logs in GarageFS buckets, and set up Fluent Bit as a DaemonSet to collect container logs from every node in the cluster. Finally, we connected everything to Grafana for querying and visualization.
It is worth noting that in this demo, GarageFS was deployed inside the same Kubernetes cluster purely for simplicity. In a production environment, this approach is not recommended. If your infrastructure runs on a cloud provider, use a managed object storage service such as AWS S3, Google Cloud Storage, or Azure Blob Storage instead. For on-premises setups, deploy GarageFS on dedicated virtual machines outside the cluster, with multiple nodes for high availability. Either way, keeping your storage layer independent from the cluster protects log data from cluster failures and avoids resource contention.
In the next article, we will explore another popular approach to log collection and storage using Filebeat and Elasticsearch deployed with the Elastic Cloud on Kubernetes (ECK) operator.
